UA-SNVRL810-P

Description

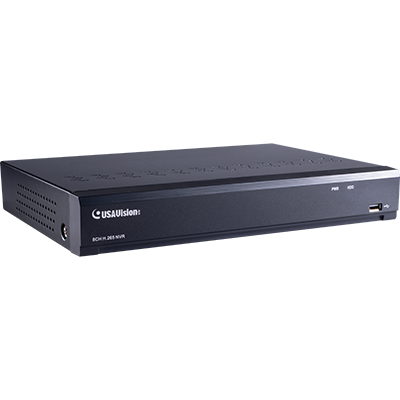

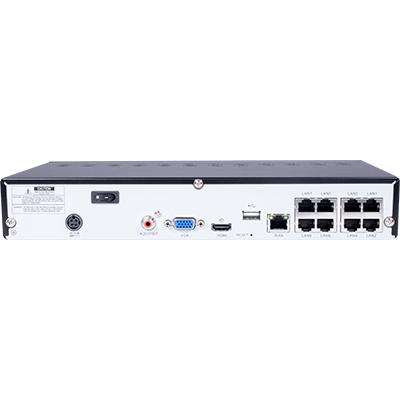

8 CH H.265 / H.264 4K PoE 1-Bay Standalone NVR

UA-SNVRL810-P is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drive. UA-SNVRL810-P supports up to 8 channels of IP cameras for network surveillance. It has 8-port built-in PoE+ (IEEE 802.3at), functioning to carry network and power to connected IP cameras. Featuring with up to 4K resolution video output, UA-SNVRL810-P eliminates the need of a separate PC to view and play back video from the unit. Its USB ports allow you to connect a USB mouse and a flash drive to back up videos.

With its Web Client on the web browser, users can access several functions, including Live View, Change Stream, Manual Alarm, Divide Screen, and more.

Key Features

  • H.265 / H.264 video format
  • Up to 8-ch IP camera input
  • 1-ch HDMI, 1-ch VGA; HDMI at up to 4K (3840 x 2160)
  • HDMI and VGA simultaneous output
  • Up to 8 MP resolution recording
  • 1 SATA HDD, up to 8 TB
  • One-way audio
  • P2P function for GV-Eye app
  • ONVIF cameras support

Note:

  • Fisheye dewarping is currently not supported.
  • Camera connection is not supported by GV-TMEB5800.
  • All specifications are subject to change without notice.

Overview


Note:

  • Fisheye dewarping is currently not supported.
  • Camera connection is not supported by GV-TMEB5800.
  • All specifications are subject to change without notice.

Packing List

  • UA-SNVRL810-P
  • 3.5″HDD Screw Kit x 2
  • 2.5″HDD Screw Kit x 2
  • USB Mouse
  • Power Adapter (DC 48V, 3.75A, 180W)
  • Power Cord
  • Download Guide

Note:

  • Fisheye dewarping is currently not supported.
  • Camera connection is not supported by GV-TMEB5800.
  • All specifications are subject to change without notice.

Download

https://www.geovision.com.tw/us/download/product/UA-SNVRL810-P

Ordering Info

Model No. Ordering Part No. Description SKU No.
UA-SNVRL810-P 760-NRL810P-000 NVR 1 Bay, H.265/H.264 84-NRL810P-UA0U
