Description

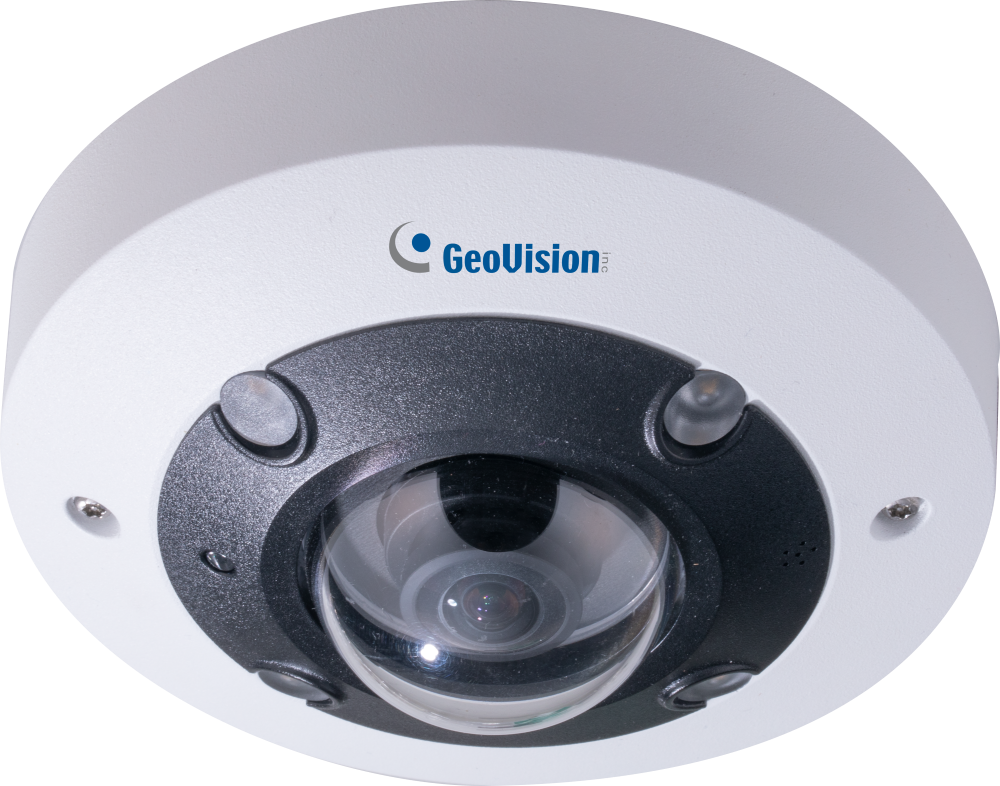

12MP H.265 Low Lux WDR IR Fisheye IP Camera

GV-QFER12700 is a 12 MP outdoor fisheye camera that can be installed on the ceiling or the wall to monitor all angles of a location. GV-QFER12700 supports H.265 video codec, which allows for better compression ratio while maintaining high video quality at reduced network bandwidths. Thanks to its automatic IR‐cut filter and IR LEDs, GV-QFER12700 is capable of day and night surveillance. In addition, the embedded edge dewarping engine enables the camera to dewarp images without using backend device resources.

Models

Model GV-QFER12700
Iris Fixed
Focal Length (mm) 1.65mm
Horizontal FOV 180°
Maximum Aperture F/2.8
Image Format 1/1.7″

Key Features

  • 1/1.7″ progressive scan CMOS
  • Quad streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 4000 x 3000
  • On-edge dewarping up to 8 MP; software dewarping up to 12 MP
  • Day and Night function (with removable IR-cut filter)
  • Vandal resistance (IK10 for metal casing)
  • Ingress protection (IP66)
  • DC 12V / PoE (IEEE 802.3af)
  • Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
  • One sensor input and one alarm output
  • 360° and 180° panorama views
  • Different angle of view accessible by multiple users at the same time
  • Playback from any view angle and zoom level
  • No mechanical moving parts
  • Two-way audio
  • Low lux enhancement
  • 3D noise reduction
  • Virtual PTZ function
  • 12 languages on Web interface
  • ONVIF (Profile G, S, T) conformant

Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.

Overview


Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount100 Straight Tube and Junction Box Kit Dimensions: 200 x 170 x 257.5 mm (7.9 x 6.7 x 10.1″)
Weight: 3.17 kg (6.99 lb)
GV-Mount101 Straight Tube Kit Dimensions: 219 x 125 x 332 mm (8.6 x 4.9 x 13.1″)
Weight: 1.8 kg (3.97 lb)
GV-Mount200 Wall Pendant Mount Dimensions: 225 x 140 x 250 mm (8.9 x 5.5 x 9.8″)
Weight: 900 g (1.98 lb)
GV-Mount203 Wall Mount and Junction Box Dimensions: 315 x 195.5 x 225 mm (12.4 x 7.7 x 8.9″)
Weight: 2.95 kg (6.5 lb)
GV-Mount206-1 Wall Box Mount Dimensions: 126.5 x 211.3 x 176.85 mm / 5 x 8.3 x 6.96″
Weight: 1.06 kg (2.33 lb)
GV-Mount 208-2 Swan Neck Mount Dimension: 1043 x 519 x 256 mm (41.06 x 20.43 x 10.08″)
Weight: 10.5 kg (23.15 lb)
GV-Mount702 Extension Tube Four options are available.
Dimensions: Ø 5.4 x 10 or 20 or 30 or 50 cm
(Ø 2.1 x 3.9 or 7.9 or 11.8 or 19.7″)
Weight: 180 g or 390 g or 550 g or 800 g
(0.4 lb or 0.86 lb or 1.21lb or 1.76 lb)
GV-Mount903-2 Dome Housing Mount Dimensions: Ø 185.5 x 165.3 mm (Ø 7.3″ x 6.5″)
Weight: 1.03 kg (2.27lb)
GV-Mount904-2 Tilting Wall Mount Bracket Dimensions: Ø 159.1 x 40.5 mm (Ø 6.3 x 1.6″)
Weight: 0.48 kg (1.05 lb)
GV-Mount912-1 Power Box Mount Bracket Dimensions: Ø 130 mm (Ø 5.1″)
Weight: 180 g (0.4 lb)
GV-Mount919 In-Ceiling Mount Dimensions: Ø 189 x 75.9 mm (Ø 7.44 x 2.98″)
Weight: 525 g (1.15 lb)
GV-PA191 PoE Adapter Power over Ethernet (PoE) Adapter The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • GV-QFER12700
  • Self-Tapping Screw x 3
  • Plastic Anchor x 3
  • Torx Wrench
  • Waterproof Rubber Set
  • 4-Pin Terminal Block
  • Download Guide

Note:

  • To avoid reflected glare by IR LED, keep a minimum distance of 1 M (3.28 ft) between the camera body and nearby walls.
  • Specifications are subject to change without notice.
