UA-B40004F

Categories: , ,

Description

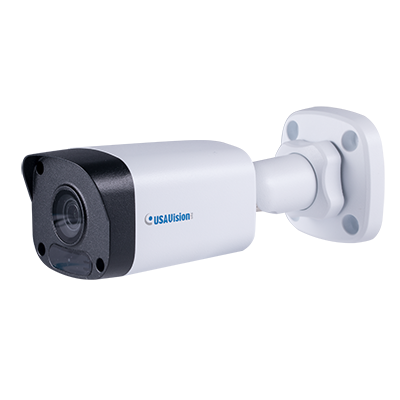

4MP H.265 Super Low Lux WDR IR Bullet IP Camera

The Bullet IP Camera is an outdoor network camera equipped with an automatic IR‐cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 standards and can be powered through PoE.

Models

Model UA-B40004F
Iris Fixed
Focal Length (mm) 4mm
Horizontal FOV 80°
Maximum Aperture F/2.0
Image Format 1/3″

Key Features

  • 1/3″ progressive scan super low lux CMOS
  • Min. illumination at 0.03 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 20 fps at 2592 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • Ingress protection (IP67)
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range (WDR)
  • Defog
  • 3D noise reduction
  • Motion detection
  • Text overlay
  • Privacy mask
  • ONVIF (Profile S, T) conformant

Note:

  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Overview



Note:

  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount300-2 Convex Corner Mount Dimensions: 137 x 233 x 160 mm (5.4″ x 9.17″ x 6.3″)
Weight: 1.65 kg (3.64 lb)
GV-Mount310-2 Concave Corner Mount Dimensions: 111.2 x 369.9 x 210 mm (2.6″ x 11.4″ x 6.6″)
Weight: 1.65 kg (3.64 lb)
GV-Mount502 Wall Mount Bracket Dimensions: 93 x 93 x 39 mm (3.66″ x 3.66″ x 1.53″)
Weight: 0.235kg (0.52 lb)
GV-PA191 PoE Adapter GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • UA‐B40004F IR Bullet IP Camera
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster

Note:

  • Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.
  • Specifications are subject to change without notice.

Download

https://www.geovision.com.tw/us/download/product/UA-B40004F

Ordering Info

Model No. Ordering Part No. Description SKU No.
UA-B40004F 125-UAB400-002 4MP, Low Lux,WDR IR,Bullet IP Camera,H.265 4mm 84-UAB400W-4F10
