UA-R500F2

Description

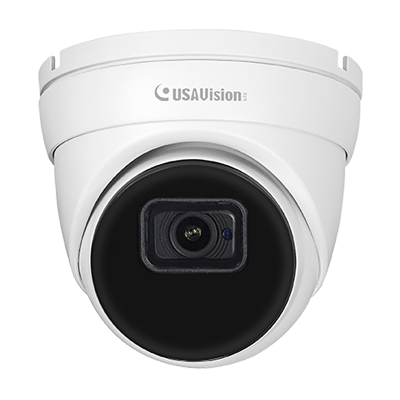

5MP H.265 Super Low Lux WDR IR Eyeball Dome IP Camera

UA-R500F2 is an outdoor network camera equipped with an automatic IR-cut filter. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. The IR LED for infrared illumination at night is up to 30 m (100 ft). The camera adheres to IP66 standards and can be powered through PoE.

Models

Model	UA-R500F2
Iris	Fixed
Focal Length (mm)	2.8mm
Horizontal FOV	97°
Maximum Aperture	F/1.6
Image Format	1/2.7″

Key Features

High quality imaging with progressive scan CMOS
Triple streams from H.265, H.264
IR distance up to 30 m (100 ft)
Built-in microphone
Built-in micro SD card slot, up to 256 GB
Ingress protection (IP66)
DC 12V / PoE (IEEE 802.3af)
P2P function for GV-Eye app
ONVIF conformant

Note:

Product design and specifications are subject to change without notice.

Overview

Note:

Product design and specifications are subject to change without notice.

Accessories

Model No	Name	Details
GV-Mount215-1	Wall Mount Bracket		Dimensions: 155 x 75 x 132 mm (6.1″ x 2.95″ x 5.2″) Weight: 0.62 kg (1.37 lb)
UA-Mount505	Wall Box Mount		Dimensions: Ø 100.5 x 56 mm (Ø 3.96″ x 2.2″) Weight: 0.46 kg (1.01 lb)
UA-Mount922	Power Box Mount Bracket		Dimensions: Ø 148.00 mm (Ø 5.83″) Weight:180 g (0.4 lb)
GV-PA191	PoE Adapter		GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch		GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter		Contact our sales representatives for the countries and areas supported.
