UA-CR200F2

Description

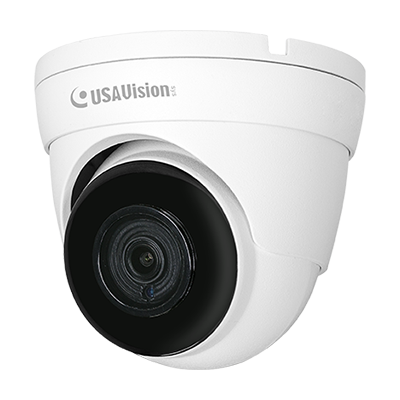

2 MP Super Low Lux WDR IR Eyeball Dome Camera

UA-CR200F2 is an outdoor, 2 MP HD Analog Camera with an automatic IR-cut filter. It is built in 18 IR LEDs for day and night surveillance, with IR illumination reaching up to 20 m (65 ft). The camera adheres to IP66 standards and supports a 4-in-1 video output (TVI / AHD / CVI / CVBS). Integrated with USAVision Standalone Video Recorder (UA‐XVL810, UA‐XVL1610 and UA‐XVR810), it supports real-time alert, event playback and more.

Models

Model	UA-CR200F2
Iris	Fixed
Focal Length (mm)	2.8mm
Horizontal FOV	88.24°
Maximum Aperture	F/2.2
Image Format	1/3″

Key Features

1/3″ progressive scan CMOS sensor
IR distance up to 20 m (65 ft)
Built-in microphone
Ingress protection (IP66)
4 in 1 (TVI / AHD / CVI / CVBS)

Note:

All specifications are subject to change without notice.

Overview

Note:

All specifications are subject to change without notice.

Accessories

Model No	Name
GV-Mount215-1	Wall Mount Bracket	Dimensions: 155 x 75 x 132 mm (6.1″ x 2.95″ x 5.2″) Weight: 0.62 kg (1.37 lb)
UA-Mount505	Wall Box Mount	Dimensions: Ø 100.5 x 56 mm (Ø 3.96″ x 2.2″) Weight: 0.46 kg (1.01 lb)
UA-Mount922	Power Box Mount Bracket	Dimensions: Ø 148.00 mm (Ø 5.83″) Weight:180 g (0.4 lb)
