UA-R580F2

Description

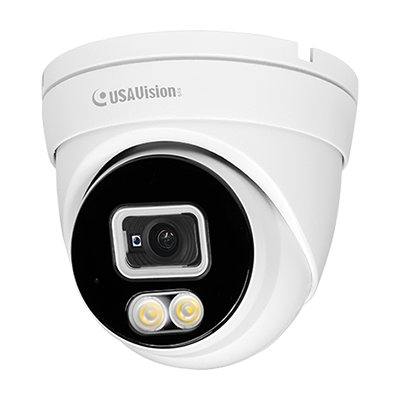

5MP H.265 Super Low Lux WDR Pro Full Color IR Eyeball Dome IP Camera

AI Deep-Learning IP Camera

UA-R580F2 is an outdoor network camera equipped with an automatic IR-cut filter. It is built in 2 IR LEDs and 2 full-color warm LEDs to enhance the accuracy of day and night surveillance. The IR illumination can reach up to 30 m (100 ft) while the warm LED is up to 25 m (80 ft). The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. The camera adheres to IP66 standards and can be powered through PoE.

This camera also supports AI functions. Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated with USAVision Standalone Network Video Recorder (UA-SNVR1620-P and UA-SNVRL810-P), it supports smart premier protection, real-time alert, event playback, and more.

Models

Model UA-R580F2
Iris Fixed
Focal Length (mm) 2.8mm
Horizontal FOV 110°
Maximum Aperture F/1.0
Image Format 1/2.7″

Key Features

  • High quality imaging with progressive scan CMOS
  • Triple streams from H.265, H.264
  • Smart warm LED
  • IR distance up to 30 m (100 ft)
  • Built-in microphone
  • Built-in micro SD card slot, up to 256 GB
  • Ingress protection (IP66)
  • DC 12V / PoE (IEEE 802.3af)
  • P2P function for GV-Eye app
  • ONVIF conformant
  • Intelligent analytics: Pedestrian & Vehicle Detection

Note:

  • Product design and specifications are subject to change without notice.

Overview


Note:

  • Product design and specifications are subject to change without notice.

Accessories

Model No Name Details
GV-Mount215-1 Wall Mount Bracket Dimensions: 155 x 75 x 132 mm (6.1″ x 2.95″ x 5.2″)
Weight: 0.62 kg (1.37 lb)
UA-Mount505 Wall Box Mount Dimensions: Ø 100.5 x 56 mm (Ø 3.96″ x 2.2″)
Weight: 0.46 kg (1.01 lb)
UA-Mount922 Power Box Mount Bracket Dimensions: Ø 148.00 mm (Ø 5.83″)
Weight:180 g (0.4 lb)
GV-PA191 PoE Adapter GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable.
GV-POE Switch GV-POE Switch is designed to provide power along with network connection to IP devices. It is available in various models with different numbers and types of ports.
Power Adapter Contact our sales representatives for the countries and areas supported.

Packing List

  • UA-R580F2
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Download Guide

Note:

  • Product design and specifications are subject to change without notice.

Download

https://www.geovision.com.tw/us/download/product/UA-R580F2

Ordering Info

Model No. Ordering Part No. Description SKU No.
UA-R580F2 750-R580F20-000 5MP,2.8mm,AI,Full Color,Super Low Lux,WDR Pro IR Eyeball Dome,Deep Learning,H.265 84-R580F20-UA00
